This type of transformer is an excellent product for urban power network transformation, which is very suitable for urban power grid, high-rise buildings, business centers, theaters, hospitals, hotels, tunnels, subway, underground power stations, laboratories, stations, terminals, airports, Pad-mounted substation, explosion prevention and explosion proof in urban power network, high-rise buildings, business center, theaters, hospitals, hotels, tunnels, subways, underground power stations, laboratories, railway stations, docks, airports and Pad-mounted substations, etc, which need high level of retardant, anti-explosion, anti-moisture performances.

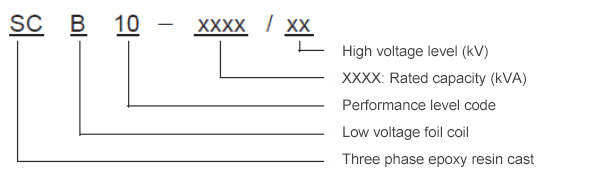

Model Explanation

Features

• Strong anti-short-circuit ability, low loss, low no-load current, strong impact resistance capability, low partial discharge, low noise, good heat sinking capacity.

• Performance parameters are better than GB and IEC standards.。

• Safe, flame retardant, fireproof, non-polluting, it can be installed directly in the load site.

• Maintenance-free, easy to install, low operating costs.

• High reliability, high mechanical strength.。

• Good seismic capability.

• Good anti-moisture & anti-corrosion features.

• Good overload capability, in the absence of air-cooling, it can withstand 120% of the load long-term service.

• Suitable to: substations located in densely populated, narrow urban places.

Normal service conditions

Altitude: ≤1000m

Ambient air temperature:

Maximum temperature: +40℃

Minimum temperature: -25℃ (Outdoor dry type power transformer)

Minimum temperature: -5℃ (Indoor dry type power transformer)

Highest average temperature of month: +30℃

Highest average temperature of year month: +20℃

Relative air humidity: ≤90%，There should not be water on the coil surface；

Three-phase power supply voltage of three-phase transformer should be approximately symmetrical

Power supply voltage wave should be similar to sine wave.

20KV

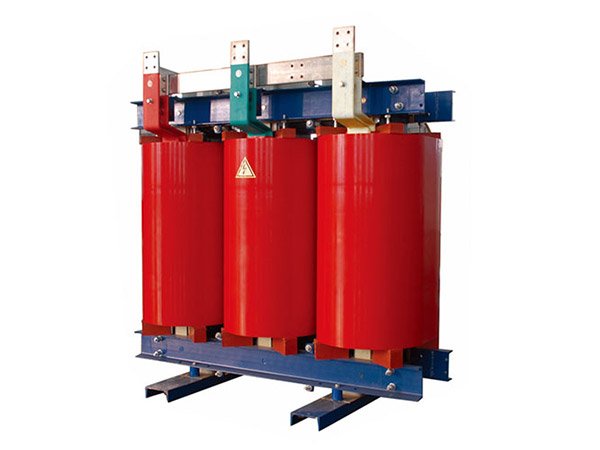

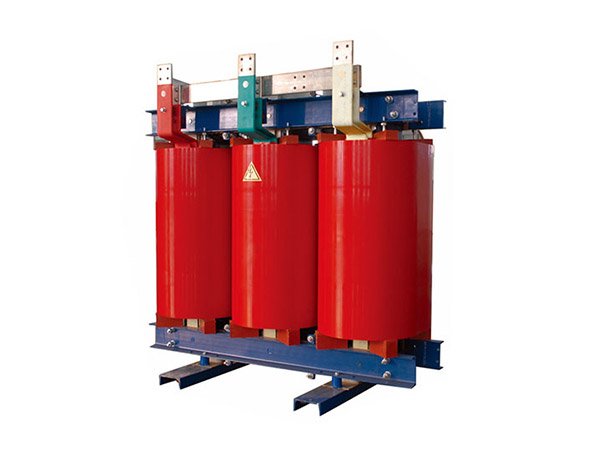

SC(B)10 Three Phase Epoxy Resin Cast Dry Type Power Transformer

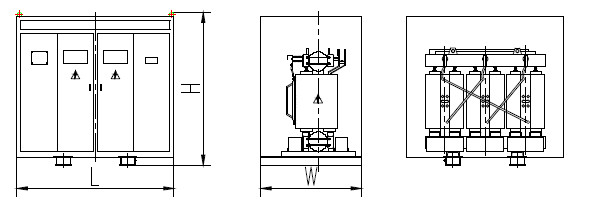

Model	Rated Capacity (kVA)	Voltage (kV)		Vector Group	No-load Loss (W)	Load Loss (W)	Weight (kg)	Reference Dimensions (mm)L*W*H	Enclosure Dimensions (mm)L*W*H	Total Weight (kg)	Impedance Voltage High Voltage(%)
		High Voltage (%)H.V.	Low Voltage L.V.
SC10-50	50	20,22 24 ±2× 2.5%	0.4	Dyn11 Yyn0	340	1230	600	1050*700*950	1600*1300*2200	800	6
SC10-100	100				540	1990	900	1100*700*1200	1600*1300*2200	1100
SC10-160	160				670	2470	1100	1200*800*1200	1600*1300*2200	1300
SC10-200	200				730	2940	1200	1250*800*1250	1800*1350*2200	1400
SC10-250	250				840	3420	1500	1300*800*1280	1800*1350*2200	1700
SC10-315	315				970	4080	1700	1400*940*1280	1800*1350*2200	1950
SC(B)10-400	400				1150	4840	1800	1450*940*1300	2000*1400*2200	2050
SC(B)10-500	500				1350	5790	2200	1450*940*1340	2000*1400*2200	2450
SC(B)10-630	630				1530	6840	2250	1500*940*1480	2000*1400*2200	2500
SC(B)10-800	800				1750	8260	2500	1540*940*1510	2150*1450*2200	2750
SC(B)10-1000	1000				2070	9780	2940	1580*940*1730	2150*1450*2200	3200
SC(B)10-1250	1250				2380	11500	3290	1580*940*1760	2300*1500*2200	3800
SC(B)10-1600	1600				2790	13800	4240	1860*1190*1800	2400*1550*2200	4550
SC(B)10-2000	2000				3240	16300	5200	1910*1190*1900	2600*1600*2200	5500
SC(B)10-2500	2500				3870	19300	6020	2000*1190*2000	2600*1600*2200	6400
