Features

Reliability

• 10,000 times mechanical endurance

• UV resistant solid insulation material

• 100% Factory Acceptance Testing

• Single molded design ensure longer creepage distance

Maintenance-free

• Magnetic Actuator with few moving parts

• Solid insulation material enables application under high contamination environment

• Painted Stainless steel enclosure and operation shaft guarantee maximum corrosion protection

Environmentally Friendly

• SF6 free

• Altitude: 3000m

• Operating temperature: -40 to 55°C

• Maximum solar radiation: 1.1 kW/m2

• Icing thickness: 20mm

• Pollution level: IV-Very Heavy

• Seismic intensity: ≤8

• Wind pressure: ≤34 m/s

• Humidity: Daily Average ≤95%; Monthly Average≤90%

Flexibility and Compatibility

• Compatible with controller or relays from other brands

• Various selections of cable connection interfaces

Smart Grid and Automation

• Encapsulated 3 current transformers(±0.2%)

• Encapsulated 6 voltages sensors maximum(±5%)

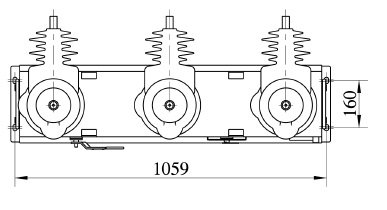

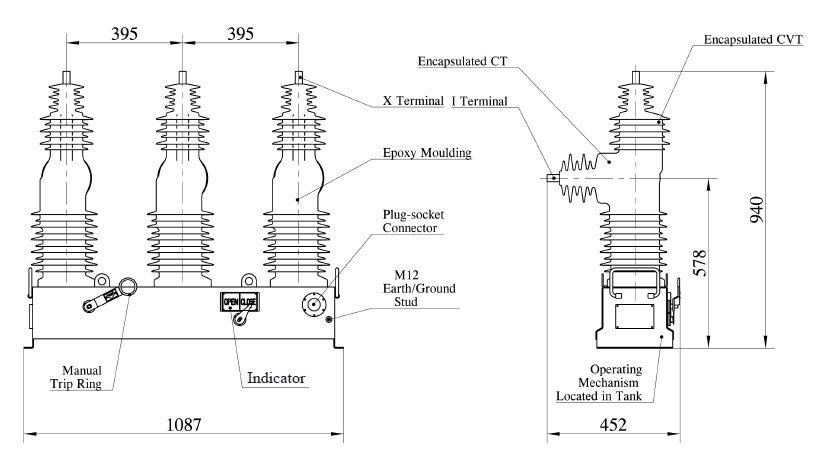

Product Dimensions

Type Test

SOJO Electric SVR automatic recloser has passed the complete type tests in accordance with relevant IEC and IEEE standards and has been granted KEMA certificates.

SJFD2000 Microprocessor Controller

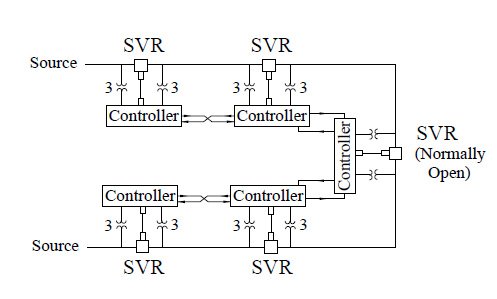

SJFD2000 multifunctional devices offer a comprehensive solution for protecting and controlling distribution feeders or reclosers. Optionally they can provide loop automation. Besides the main protection functions, they include monitoring and operation features as well as logic programming, and events and fault reporting providing comprehensive switchgear (circuit breaker, recloser or LBS) management local and remote capabilities.

SJFD2000 is a cost-effective solution for protection and control systems for which IEC 61850 standard compliance is required, including access in other protocols and web services as well.
